KNIFE GATE VALVE

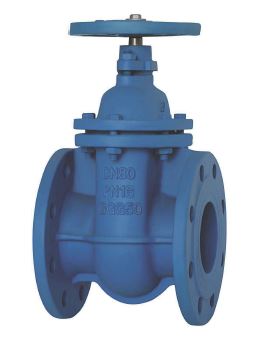

UNI-FLO RESILIENT WEDGE GATE VALVE, FIG RSV
Uni-directional sealing One piece wafer body Full bore unrestricted flow Replaceable EPDM seal, locked in with a metal seat ring Protected Rising Spindle

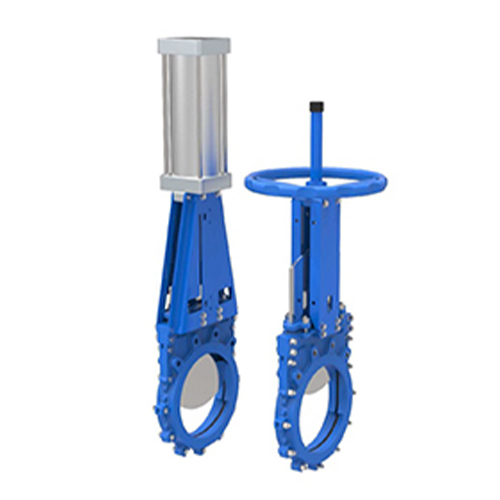

UNI-FLO QM KNIFE GATE VALVE
Bi-directional sealing No groove or cavity in the bore of the valve where slurry can collect Fully moulded and reinforced body seal. The rigidity of the seal prevents creep of the seal when the valve is opened or closed, reducing the torque to open and close the valve. Precision machining of the stuffing box cavity that reduces the force required to seal the valve which reduces the opening and closing torques Arched PTFE scrapers across the width of the blade 16 bar pressure rating for valves from DN50 to DN 200 and 10 bar for valves from DN 250 to DN 600 Full bore unrestricted flow Self cleaning flush out corners that prevents deposit build up in the sealing area

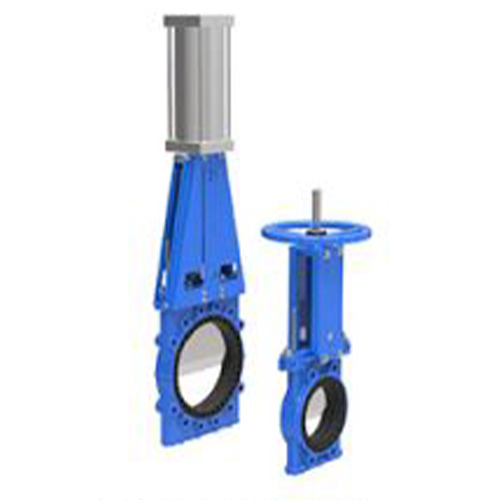

UNI-FLO QP KNIFE GATE VALVE
Integral replaceable polyurethane cartridge that is mechanically retained within a two-piece body Bi-directional sealing No groove or cavity in the bore of the valve where slurry can collect Full bore unrestricted flow Fully moulded and reinforced body seal. The rigidity of the seal prevents creep of the seal when the valve is opened or closed, reducing the torque to open and close the valve. Precision machining of the stuffing box cavity that reduces the force required to seal the valve which reduces the opening and closing torques PTFE scrapers across the width of the blade 16 bar pressure rating for valves from DN50 to DN 200 and 10 bar for valves from DN 250 to DN 400 and 8 bar for valves from DN 450 to DN 600 Self cleaning flushout corners that prevents deposit build up in the sealing area The spindle is protected against slurry splatter, utilising a spindle cover above the handwheel and bellows below

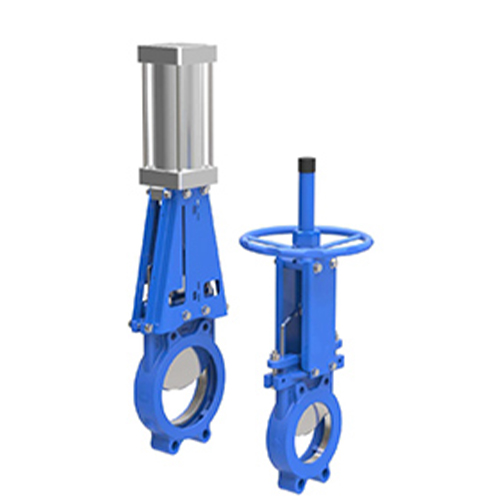

UNI-FLO QW SLURRY KNIFE GATE VALVE
Two replaceable elastomer sleeves that forms the bore of the valve Bi-directional sealing Full bore unrestricted flow No groove or cavity in the bore of the valve where slurry can collect The spindle is protected against slurry splatter, utilizing a spindle cover above the handwheel and bellows below
